Scaime,France Weighing Indicators
Scaime France
Scaime propose indicators offering an ideal solution to most industrial weighing applications.Our range enables a choice of different levels of human-machine interface (keyboard, display size and type), different presentations (for building in, for desk top, DIN rail), and many functions (simple weighing, counting, tantalization, management of weighbridge, etc.).Our weighing indicators are optimized for fast, easy use, and are approved for trade transactions.

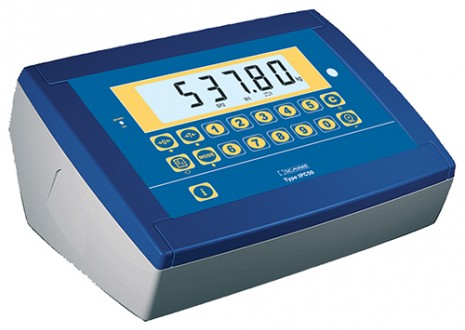

Scaime Weighing Indicator IPC50
Scaime IPC50 Table top indicator comes in two versions ABS plastic with a IP54 rating and stainless steel with a IP65 rating. Can support up to 8 loadcells 350 Ω ohams 4 or 6 wire. Standard features include 2 x RS232 outputs, large 6 digit 25mm LCD display with backlight.
Options include
- Time and date
- Data storage device (DSD) and time and date
- Two relay outputs and two logic inputs for programmable set points
- 1 x RS485 (replaces 1 x RS232)
- Analog 0-20mA, 4-20mA, 0-10VDC
- Fixed or adjustable mounting brackets
- Remote control
- TP200 printer

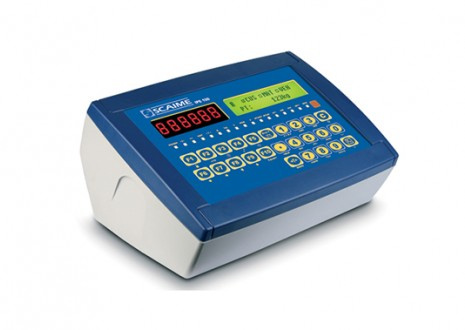

Scaime Weighing Indicator IPE100
Scaime IPE100 Weighbridge indicator can support up to 16 by 350 Ω oham loadcells. With two by RS232 and one by RS485 outputs, waterproof 25 keys functional keyboard, decimated software management and twin displays all standard.
Options include
- Display: backlit, 14-segment, 20 mm LCD for weight readouts
- Integrated A/D-converter for connecting analog platforms
- Material: AISI 304 stainless steel
- Optional RS-232, RS-485, RS-422, 4-20mA, Digital I/O
